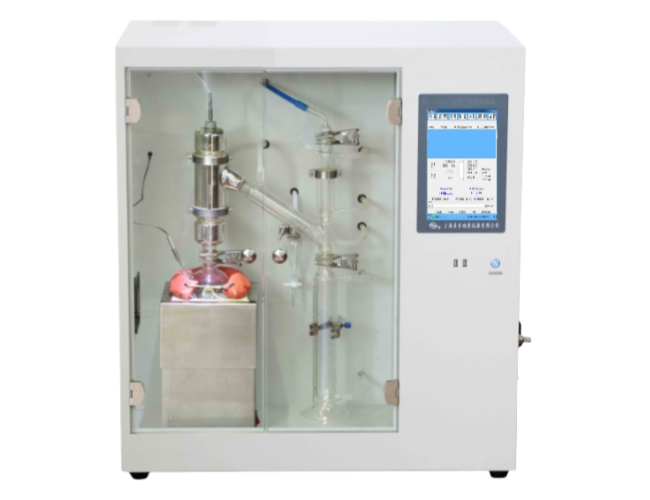

SH9168B Auto Vacuum Distillation Tester German Imported Parts Multi-Standard Compliant

  • 1
  • 2

Supply Ability : 5000 sets/year

Temp Range : -40 ℃ ～ Room Temp Or Room Temp ～ 500 ℃

Certification : GB/T 9168 ASTM D1160

Delivery Time : 7-15 work days

Volume Detection Range : 0 ～ 200mL

Distillation Rate : 4 ～ 5mL/min

Place of Origin : China

Payment Terms : T/T

Brand Name : Shengtai Instruments

MOQ : 1

Packaging Details : carton

Accuracy : ± 0.1℃

Cooling Method : Compressor Cooling

Model Number : SH9168B

Display Mode : Embedded Industrial Grade Color Touch Screen

Contact Now

SH9168B Auto Vacuum Distillation Tester German Imported Parts Multi-Standard Compliant
Product Description

SH9168B All-Auto Vacuum Distillation Test Unit
The SH9168B vacuum distillation test machine is a dedicated lab device engineered to meet China’s GB/T 9168 and ASTM D1160 specifications.
It gauges the boiling ranges of petroleum samples during full or partial vaporization. Equipped with heating and cooling systems, this all-auto distillation unit uses an imported liquid level sensor to track fluid levels automatically.


Product Specifications
Attribute Value
Temp range -40 ℃ ～ room temp or room temp ～ 500 ℃
Accuracy ± 0.1℃
Distillation rate 4 ～ 5mL/min
Volume detection range 0 ～ 200mL
Cooling method Compressor cooling
Display mode Embedded industrial grade color touch screen


Performance Characteristics
  • Fully automated temperature control, liquid level tracking, temperature recording, and printing functions
  • Built-in micro thermal printer for automatic result reporting
  • Standard-compliant testing process with reliable data and excellent repeatability
  • Imported infrared liquid level detection unaffected by ambient light
  • Accurate volume measurement
Technical Parameters
  • Display mode: Embedded industrial grade color touch screen
  • Refrigeration method: German imported compressor refrigeration
  • Temp range: -40 ℃ ～ room temp or room temp ～ 500 ℃ accuracy ± 0.1℃
  • Heating method: Electric heating unit, maximum heating power of 800 W
  • Temperature sensor: Pt100 glass probe imported from Germany
  • Cooling method: Compressor cooling
  • Distillation rate: 4 ～ 5mL/min
  • Volume detection range: 0 ～ 200mL
  • Working power supply: AC220V 50Hz
  • Packaging size: 780 * 550 * 650mm
  • Weight: 65kg
Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.
Instrument Quality Assurance
  • Brand new instruments meeting quality standards with manufacturer's certificate
  • Materials and components meet specified technical requirements
  • One-year overall quality assurance (excluding normal wear and tear)
  • Free maintenance for quality issues during warranty period
  • Lifetime discounted parts supply and maintenance services
  • Post-warranty maintenance available at cost
SH9168B Auto Vacuum Distillation Tester German Imported Parts Multi-Standard Compliant
Packing List
Number Name Quantity Unit
1 Host 1 Unit
2 Sensor 3 Piece
3 Vacuum pump 4L/S 1 Unit
4 Vacuum tube 1.5 Metre
5 Vacuum gauge 1 Set
6 Vacuum distillation flask 1 Piece
7 Vacuum jacketed distillation column assembly 1 Set
8 Receiver 1 Piece
9 Temperature gauge -2～400 ℃ 1 Piece
10 Silicone tube with a diameter of 6 * 9 2 Metre
11 Cylinder connection 1 Piece
12 Certificate of conformity 1 Copy
13 Instructions 1 Copy


Unlike most domestic manufacturers that only adhere to domestic standards, Shengtai Instruments optimizes its product design and supporting services for the global market:
Comprehensive coverage of multiple standards: The core products simultaneously meet the standards of various countries such as China's GB and the United States' ASTM, and the test results are recognized in the global oil trade scenarios.
